Fabling: Puzzles beyond Rubik's Cube with TeX

Anthropic’s Fable 5 released (and got banned, and re-released). I wanted to do something interesting with it.

Here’s the outcome: TeX-puzzles

What is this?

There’s a TeX package rubikcube that allows you to draw a Rubik’s cube in TeX. The most interesting point of this package is that you can rotate the cube with usual Rubik’s cube notations (like R, U', etc.), and it will draw the cube after the rotation. I used the package once when I was translating Colmez’s note on Rubik’s cube (see here).

The above GitHub repository is a collection of LaTeX packages where you can draw and rotate twelve more permutation puzzles beyond Rubik’s cube, including:

• Pocket cube (2 x 2 x 2)
• Pyraminx
• Master Pyraminx (4 x 4 version of Pyraminx)
• Professor Pyraminx (5 x 5 version of Pyraminx)
• Face-turning octahedron
• Baby Face-turning octahedron (2 x 2 version of Face-turning octahedron)
• Corner-turning octahedron
• Megaminx
• Gigaminx
• Skewb
• Square-1
• Dogic (both 1 and 2)

Who made this?

Fable 5 with Claude Code CLI. Instruction was minimal: look at the rubikcube package and make a similar package for other puzzles. I didn’t ask it to work on all the puzzles at once, but one by one. I didn’t write any single line of code.

The most surprising puzzles were Square-1 and Dogic. Square-1 is a puzzle where there are invalid moves depending on the state of the puzzle. Also, its shape is not fixed. Fable decided to draw it by drawing top, middle, and bottom layers separately.

Here’s a sample image from the example pdf:

The corresponding code is:

\begin{center}
\SquareOneSolved
\SquareOneRotation{(1,1)/}%
\SqPair%
\SquareOneRotation{(3,0)/}%
\SqPair%
\SquareOneRotation{(3,0)/}%
\SqPair%
\SquareOneRotation{(1,0)/}%
\SqPair

\medskip

\SquareOneRotation{(0,2)/}%
\SqPair%
\SquareOneRotation{(4,0)/}%
\SqPair%
\SquareOneRotation{(2,0)/}%
\SqPair
\end{center}

Dogic is an icosahedron puzzle, and there are two versions depending on how the colors (stickers) are arranged. This is a puzzle that was discontinued in 2010, and now it is very hard to find.¹ In particular, there’s no standard notation for Dogic, so I asked Fable to make up a notation. I’m quite surprised that it decided to draw it as two “stars” (front and back), where I didn’t give any guidance on how to draw it.

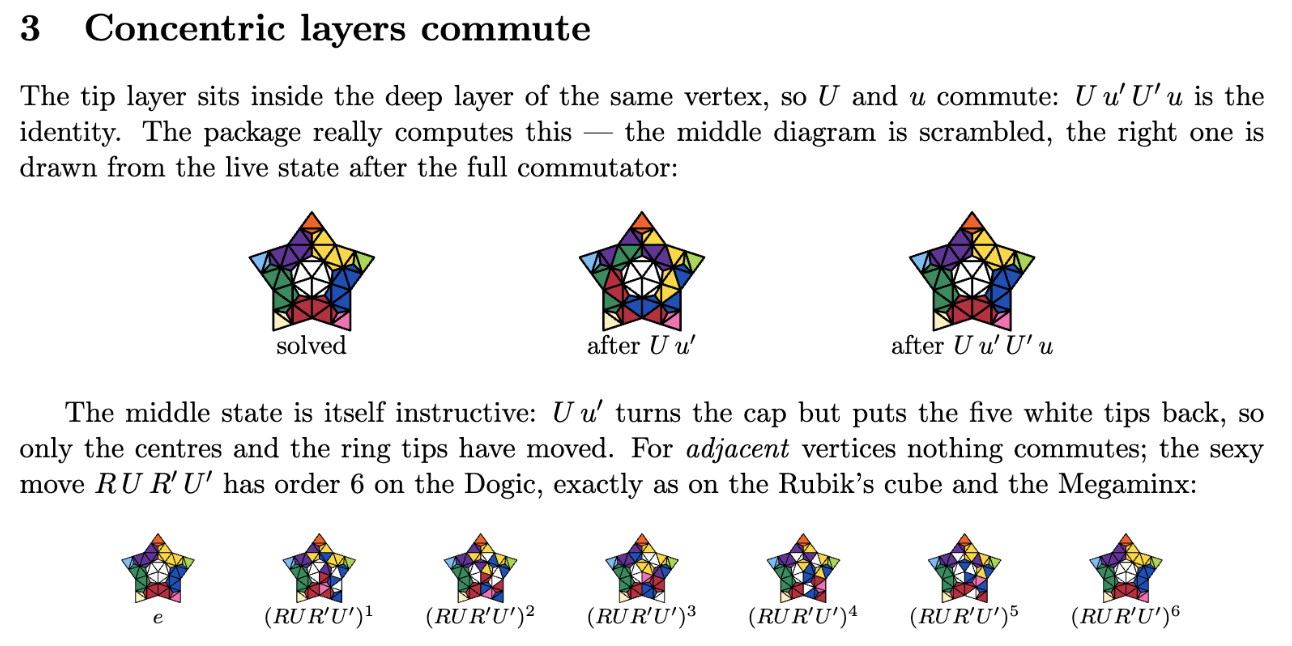

Here’s a sample image from the example pdf:

The corresponding code is:

\begin{center}
\DogicSolved
\ShowDogic{4.4cm}{0.36}{\DrawDogicFront}%
\DogicRotation{U,up}%
\ShowDogic{4.4cm}{0.36}{\DrawDogicFront}%
\DogicRotation{Up,u}%
\ShowDogic{4.4cm}{0.36}{\DrawDogicFront}

\makebox[4.4cm]{\small solved}%
\makebox[4.4cm]{\small after $U\,u'$}%
\makebox[4.4cm]{\small after $U\,u'\,U'\,u$}
\end{center}

\begin{center}
\def\DogicLineWidth{0.35pt}%
\DogicSolved
\ShowDogic{2.15cm}{0.21}{\DrawDogicFront}%
\DogicRotation{R,U,Rp,Up}%
\ShowDogic{2.15cm}{0.21}{\DrawDogicFront}%
\DogicRotation{R,U,Rp,Up}%
\ShowDogic{2.15cm}{0.21}{\DrawDogicFront}%
\DogicRotation{R,U,Rp,Up}%
\ShowDogic{2.15cm}{0.21}{\DrawDogicFront}%
\DogicRotation{R,U,Rp,Up}%
\ShowDogic{2.15cm}{0.21}{\DrawDogicFront}%
\DogicRotation{R,U,Rp,Up}%
\ShowDogic{2.15cm}{0.21}{\DrawDogicFront}%
\DogicRotation{R,U,Rp,Up}%
\ShowDogic{2.15cm}{0.21}{\DrawDogicFront}

\makebox[2.15cm]{\scriptsize $e$}%
\makebox[2.15cm]{\scriptsize $(RUR'U')^1$}%
\makebox[2.15cm]{\scriptsize $(RUR'U')^2$}%
\makebox[2.15cm]{\scriptsize $(RUR'U')^3$}%
\makebox[2.15cm]{\scriptsize $(RUR'U')^4$}%
\makebox[2.15cm]{\scriptsize $(RUR'U')^5$}%
\makebox[2.15cm]{\scriptsize $(RUR'U')^6$}
\end{center}

Do I really need Fable 5 to do this? I don’t know, since I haven’t tried with Claude Opus 4.8 or Codex 5.5. The only thing I know is that Fable 5 did the job.

How?

Each puzzle has auxiliary python scripts that are used to generate the “Views” of .sty files. The scripts also do some tests and verifications, including computation of the number of possible states of each puzzle. Although I didn’t fully understand the code, it seems that verification of large puzzles uses the Schreier-Sims algorithm.

Why?

Mostly for fun. But there’s another reason. To be continued…
